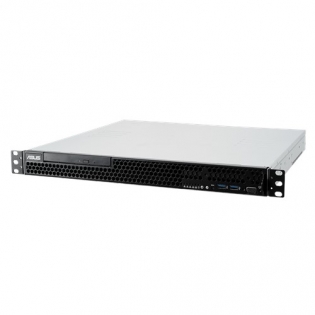

ASUS RS100-E10-PI2 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹
  • 中央處理器
    1 x Socket LGA1151
    Intel® Xeon® 處理器 E-2100 family
    Intel® Xeon® 處理器 E-2200 family
    The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor

    * 有關 CPU 支援清單，請參閱 tw.asus.com
  • Generation
    E10
  • 核心晶片組
    Intel® C242 Chipset
  • 記憶體
    總 Slots 數 : 4 (2 通道)
    總容量 : 最大至 128GB UDIMM
    記憶體類型 :
    DDR4 2666/2400 UDIMM non ECC and with ECC
    記憶體大小:
    32GB, 16GB, 8GB, 4GB UDIMM
    * 最新更新請參考支援頁面。
  • 擴充槽
    Total PCI/PCI-X/PCI-E/PIKE Slots: 1
    1 x PCI-E x16 (x16 Gen3 Link)
  • 資料儲存應用
    SATA 控制器: Intel® C242 Chipset
    2 x Internal 3.5” HDD
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1 )
  • 支援的磁碟機
    with ODD, up to 2 x3.5" disk bay or option 1x3.5"+2x2.5" disk bay support
    without ODD, up to 2 x3.5" disk bay or option 1x3.5"+4x2.5" disk bay support
  • 附屬儲存裝置 FDD/CD/DVD
    1 x Slim-type Optical Drive Bay
    Options: No Device / DVD-RW
  • 網路功能
    4 x Intel® I210AT + 1 x Mgmt LAN
  • 顯示晶片
    Aspeed AST2500 with 32MB VRAM
  • 前面板輸出端子
    2 x USB 3.0 ports
    1 x VGA port
  • Rear I/O Ports
    1 x External Serial Port
    4 x RJ-45 ports
    2 x USB 3.1 ports
    2 x USB 3.0 ports
    1 x VGA port
    1 x RJ-45 ports (One for ASMB9-iKVM)(Optional)
  • Switch/LED
    Rear Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch

    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    LAN 1-4 LED
  • 作業系統支援

    * (如有變更，恕不另行通知)
    Windows® Server 2016
    SUSE® Linux Enterprise Server
    RedHat® Enterprise Linux
    CentOS
  • 管理工具
    ASUS Control Center Enterprise (選購)
    Optional ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance
    BSMI, CE, RCM, FCC(Class B)
  • 產品尺寸
    380mm x 430mm x 44mm
    14.96" x 16.93" x 1.73"
  • 主機板尺寸
    1U
  • 重量
    Net Weight: 7.5 Kg
    Gross Weight: 11.72 Kg
  • 電源規格
    Single 250W 80 PLUS Bronze Power Supply
    Rating: 100-240Vac,4A ,50-60Hz, Class I
    Single 350W 80 PLUS Gold Power Supply
    Rating: 100-240Vac,6A-3A ,50-60Hz, Class I
