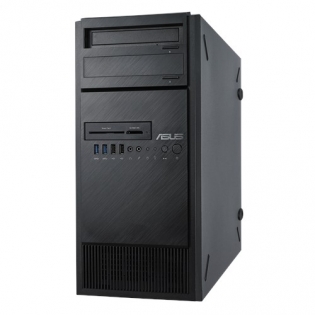

ASUS TS100-E10-PI4 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹
  • 中央處理器
    1 x Socket LGA1151
    Intel® Xeon® 處理器 E-2100 family(95W)
    Intel® Xeon® 處理器 E-2200 family(95W)
    The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor

    * 有關 CPU 支援清單，請參閱 tw.asus.com
  • Generation
    E10
  • 核心晶片組
    Intel® C242 Chipset
  • 記憶體
    總 Slots 數 : 4 (2 通道)
    總容量 : 最大至 128GB UDIMM
    記憶體類型 :
    2666/2400 UDIMM non ECC and with ECC
    記憶體大小:
    32GB, 16GB, 8GB, 4GB
    * 最新更新請參考支援頁面。
  • 擴充槽
    1 x PCIe x16 (Gen3 x16 Link)
    1 x PCIe x8 (Gen3 x4 Link)
    2 x PCI
  • 資料儲存應用
    SATA 控制器: Intel® C242 Chipset
    6 x SATA3 6Gb/s ports + 2 x M.2 connector *1
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKEII 3008-8i 8-port SAS HBA
  • 磁碟機插槽
    3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays*
    1 x Internal 2.5" drive bay
    1 x Optional internal 5.25” to 3.5”/2.5” drive cage

    * Support only 1 drive when add-on card over 9.5” installed on x16 link slot

    2 x M.2 (NGFF 22110/2280/2260/2242. One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.)
  • 附屬儲存裝置 FDD/CD/DVD
    2 x 5.25" media bays
    Options: No Device / DVD-RW / DVD ROM
  • 網路功能
    1 x Intel® I210AT
    1 x i219-LM
  • 顯示晶片
    Aspeed AST2510 with 64MB VRAM
  • 前面板輸出端子
    2 x USB 3.0 ports
    2 x USB 2.0 ports
    1 x Headphone port
    1 x Microphone port
  • Rear I/O Ports
    2 x USB 3.1 ports
    2 x USB 3.0 ports
    2 x USB 2.0 ports
    1 x VGA Port (onboard Aspeed AST2510)
    2 x LAN Ports
    3 x Audio Jacks (onboard Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC)
    1 x PS/2 Keyboard/ Mouse Port
  • Switch/LED
    Front Switch/LED:
    1 x Power switch
    1 x Power LED
    1 x Reset switch
    1 x HDD Access LED
  • 管理工具
    ASUS Control Center Enterprise (Optional)
  • 產品尺寸
    423mm x 190mm x 435mm
    16.65" x 7.48" x 17.1"
  • 主機板尺寸
    Tower
  • 電源規格
    500W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac, 7-3.5A, 50/60Hz, Class I
    300W 80PLUS Single Power Supply, Bronze
    Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I
    450/550W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac,50-60 Hz,9-4.5A
