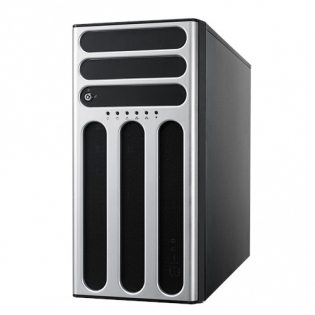

ASUS TS300-E10-PS4 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹
  • 中央處理器
    1 x Socket LGA1151
    Intel® Xeon® 處理器 E-2100 family
    Intel® Xeon® 處理器 E-2200 family
    The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor

    * 有關 CPU 支援清單，請參閱 tw.asus.com
  • Generation
    E10
  • 核心晶片組
    Intel® C246 Chipset
  • 記憶體
    總 Slots 數 : 4 (2 通道)
    總容量 : 最大至 128GB UDIMM
    記憶體類型 :
    DDR4 2666/2400
    記憶體大小:
    32GB, 16GB, 8GB, 4GB
    * 最新更新請參考支援頁面。
  • 擴充槽
    Total PCI/PCI-X/PCI-E/PIKE Slots: 4+1

    1 x PCIe 3.0 x16 slots (@x16/8 link)
    1 x PCIe 3.0 x8 slots (@ x8 link)
    1 x PCIe 3.0 x8 slot (@x4 link)
    1 x PCI slot
    1 x MIO slot for Audio Card
  • 資料儲存應用
    SATA 控制器: Intel® C246 Chipset
    8 x SATA3 6Gb/s 連接埠
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • 支援的磁碟機
    4 x Hot-swap 3.5/2.5" HDD Bays
    Optional(additional 4 x HDD bays)

    2 x M.2 (NGFF 22110/2280/2260/2242)
    -1 x M.2 Socket 3, with M key, (SATA &PCIE 3.0 x 4 mode)
    -1 x M.2 Socket 3, with M key, (SATA & PCIE 3.0 x 1 mode)
  • 附屬儲存裝置 FDD/CD/DVD
    4 x 5.25" media bays
    (Options: No ODD/DVD-RW)
    (DVD-RW default for North America)
  • 網路功能
    4 x Intel® I210AT + 1 x Mgmt LAN
  • 顯示晶片
    Aspeed AST2500 with 64MB VRAM
  • 前面板輸出端子
    2 x USB 3.1 Gen1 ports
    2 x USB 2.0 ports
    1 x Audio out port (with optional MIO card)
    1 x MIC in port (with optional MIO card)
    1 x Power Botton
    1 x Reset Botton
  • Rear I/O Ports
    5 x RJ-45 ports (One for ASMB9-iKVM)
    2 x USB 3.1 Gen2 ports
    2 x USB 3.1 Gen1 ports
    1 x Internal A Type USB Port
    1 x VGA port
    1 x COM port
  • Switch/LED
    Front LED:
    1 x Power LED
    1 x Location LED
    1 x HDD Access LED
    1 x Message LED
    LAN 1-4 LED
  • 作業系統支援
    Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
  • 管理工具
    ASUS Control Center Enterprise (選購)
    Optional ASMB9-iKVM for KVM-over-IP
  • Regulatory Compliance
    BSMI, CE
  • 產品尺寸
    445mm * 217.5mm * 545mm
    17.91" x 8.54" x 21.45"
  • 主機板尺寸
    5U/Tower
  • 重量
    Net Weight: 15.0 Kg
    Gross Weight: 18.9 Kg
  • 電源規格
    500W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac, 7-3.5A, 50/60Hz, Class I
