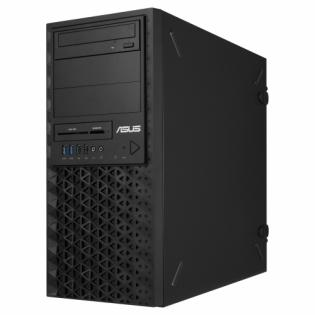

ASUS TS100-E11-PI4 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • 中央處理器

    1 x Socket LGA1200
    Intel® Xeon® processor E-2300 family(95W)
    Intel® Pentium Processors
    *Refer to support page for more information

  • 核心晶片組

    Intel® C256 Chipset

  • 記憶體

    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200  ECC UDIMM
    Memory Size :
    32GB, 16GB, 8GB
    * Refer to support page for more information

  • 擴充槽

    Total:4
    2 x PCI-E x4 slot, x8 Gen3 Link
    1 x PCI-E x8 slot, x8 Gen4 Link
    1 x PCI-E x16 slot, x16 Gen4 Link
    (Auto switch to x8 link if slot 4 is occupied )

  • 資料儲存應用

    SATA Controller :
    Intel® C256 Chipset
    8 x SATA3 6Gb/s ports

  • 支援的磁碟機

    3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays
    1 x Internal 2.5" drive bay
    2 x M.2 (Up to 22110)
    Gen4 x4 Link and Gen3 x2 Link
    gray SATA port will disable when M.2 is SATA signal

  • 附屬儲存裝置 FDD/CD/DVD

    2 x 5.25" media bays
    (Options: No ODD/DVD-RW)

  • 網路

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 前面板輸出端子

    2 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Headphone port
    1 x Microphone port

  • Rear I/O Ports

    2 x USB 3.2 Gen2 ports
    2 x USB 3.2 Gen1 ports
    1 x VGA port (support by ASMB10)
    1 x HDMI port from CPU (useable only with iGPU)
    2 x LAN Ports
    1 x PS/2 Keyboard/ Mouse Port

  • Switch/LED

    Front:
      1 x Power Switch/LED
      1 x Reset Switch
      1 x HDD Access LED

  • 系統支援

    Please find the latest OS support from https://servers.asus.com/support/os

  • 管理工具

    Bundle ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)

  • 電源規格

    300W 80PLUS Single Power Supply, Bronze
    Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I
    550W/750W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac,50-60 Hz,9-4.5A
