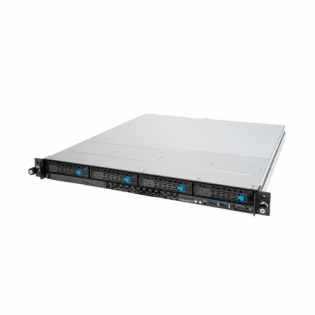

ASUS RS300-E11-RS4 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Xeon® processor E-2300 family
    Intel® Pentium™ processors
    *Refer to support page for more information

  • Core Logic

    Intel® C252 Chipset

  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200/2933/2666 UDIMM
    Memory Size :
    32GB, 16GB, 8GB, 4GB UDIMM
    * Refer to support page for more information

  • Expansion Slots

    Total PCI/PCI-X/PCI-E/PIKE Slots: 3
    1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL
    1 x PCI-E x 8 (Gen4 x8 Link), HH/HL*
    1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot
    (optional for Intel X710 10G LAN card)
    * not available when supporting NVME SSD

  • Storage

    Storage Controller :
    Intel® C252 Chipset
    6 x SATA3 6Gb/s ports
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1/5/10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • HDD Bays

    4 x 3.5” Hot-Swap HDD Bays
    -up to (2*SATA/SAS/NVMe + 2*SATA/SAS)
    *SAS support only from optional SAS HBA/RAID card
    *NVMe support only from optional NVMe upgrade kit

  • Auxiliary Storage FDD/CD/DVD

    1 x Slim-type Optical Drive Bay
    Options: No Device / DVD-RW / DVD-ROM

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • Front I/O Ports

    1 x VGA port*
    2 x USB 3.2 Gen1 ports
    *Must support by ASMB10

  • Rear I/O Ports

    2 x USB 3.2 Gen 2 ports
    1 x VGA port *
    1 x HDMI port from CPU
    1 x COM port
    2 x RJ-45 ports
    1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)
    *Must support by ASMB10

  • Switch/LED

    Rear Switch/LED:
    1 x Q-Code/Port 80 LED
    1 x Power switch
    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet

  • Power Supply

    1+1 Redundant 450W 80 PLUS PLATINUM Power Supply
