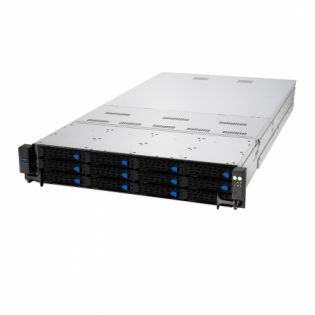

ASUS RS720-E10-RS12E Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • 中央處理器

    2 x Socket P+ (LGA 4189)
    3rd Gen Intel® Xeon® Scalable Processors Family(270w)

    * 有關 CPU 支援清單，請參閱 tw.asus.com
    UPI (11.2 GT/s)

  • 核心晶片組

    Intel® C621A Chipset

  • 記憶體

    總 Slots 數 : 32 (8-channel per CPU, 16 DIMM per CPU)
    總容量 : 最大至 6TB per socket
    記憶體類型 :
    DDR4 3200/2933 RDIMM
    DDR4 3200/2933 LRDIMM
    DDR4 3200/2933 LR-DIMM 3DS
    3200/2933 RDIMM 3DS
    記憶體大小:
    64GB, 32GB, 16GB, 8GB RDIMM
    256GB, 128GB, 64GB RDIMM 3DS
    128GB RDIMM 3DS/LR-DIMM 3DS
    512GB, 256GB, 128GBIntel® Optane™ DC persistent memory 200 Series (DCPMM)
    * 最新更新請參考支援頁面。
    * 實際執行頻率需依據主機搭配之Intel CPU型號和記憶體模組數量決定 (請參照Intel官方公告CPU支援Memory Types)

  • 擴充槽

    Up to 9 x Expansion slots
    2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)
    1 x PCIe Gen4 x8, FHFL (CPU1 x1)
    1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)
    4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)

    *Installing GPU cards will occupied expansion slots.

  • 資料儲存應用

    SATA 控制器: Intel C621A
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    Intel®VROC (For Linux/Windows)
    (Support Software RAID 0/1/5/10 )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(選購)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(選購)
    Broadcom MegaRAID 9560-16i (選購)

  • 磁碟機插槽

    Front bays:
    12 x 3.5 or 2.5" hot-swap bays (8x NVMe/SATA/SAS*+ 4x SATA/SAS*)

    Rear bays (option):
    2 x 2.5" hot-sway drive bays
    (2x SATA/NVMe)

    2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link)
    *SAS support only from SAS HBA/RAID card
    **must with PIKE II 3008-8i, 3108-8i/16PD(slot4) to support up to 12x SATA/SAS
    ***Support tri-mode card

  • System Fan

    4(if support GPU SKU, it will have external fan)

  • 網路功能

    Option 1
    1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
    or
    Option 2
    1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
    or
    None x + 1 x Mgmt LAN

  • 顯示晶片

    Aspeed AST2600 with 64MB VRAM

  • 多GPU支援

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 前面板輸出端子

    2 x USB 3.2 Gen 1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    4/2 x NIC ports*

    * The number of NIC ports available depends on the LAN Controller card installed.

  • Switch/LED

    Front Switch/LED:
    1 x Power switch/LED
    1 x Location switch/LED
    1 x Reset switch
    1 x HDD Access LED
    1 x Message LED
    LAN 1-4 LED
    * LAN3-4 for Mezzazine card use

    Rear Switch/LED:
    1 x Power switch
    1 x Q-Code/Port 80 LED
    1x Location LED

  • 作業系統支援

    Please find the latest OS support from https://servers.asus.com/support/os

  • 管理工具

    ASUS Control Center(Classic) On-Board ASMB10-iKVM for KVM-over-IP

  • 電源規格

    1+1 Redundant 2400W 80 PLUS Titanium Power Supply
    Rating: 100-127Vac/ 200-240Vac, 13.8A/15A (for each inlet), 50/60Hz, Class I

    1+1 Redundant 1600W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet),  50-60Hz, Class I
