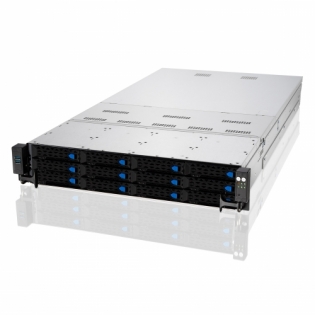

ASUS RS720A-E11-RS12 Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • 中央處理器

    2 x Socket SP3 (LGA 4094) per Node
    AMD EPYC™ 7003 Series
    AMD EPYC™ 7002 Series
    Max TDP : 280W
    3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

  • 記憶體

    Total Slots :
    32 (8-channel per CPU, 16 DIMM per CPU)
    Capacity :
    Maximum up to 4096GB per socket
    Memory Type :
    Dual Channel DDR4 3200/2933 RDIMM
    Dual Channel DDR4 3200/2933 LRDIMM
    Dual Channel DDR4 3200/2933 LR-DIMM 3DS non ECC
    Memory Size :
    64GB, 32GB, 16GB RDIMM
    128GB, 64GB LRDIMM
    256GB, 128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information

  • Graphic Card

    Please refer to GPU support list　

  • 擴充槽

    Up to 9 x Expansion slots
    2 x PCIe Gen4 x8 or 1 x PCIe Gen4 x16, FHFL (CPU1 x1)
    1 x PCIe Gen4 x8, FHFL (CPU1 x1)
    1 x PCIe Gen4 x16, FHFL or OCP 3.0 NIC socket (CPU1 x1)
    4 x PCIe Gen4 x8 or 2 x PCIe Gen4 x16, FHFL (CPU2 x2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2 x1)

    *Installing GPU cards will occupied expansion slots.

  • 資料儲存應用

    Storage Controller :
    8 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
    Broadcom MegaRAID 9560-16i (Optional)

  • 磁碟機插槽

    12 x 3.5" hot-swap drive bays (4x NVMe + 4x NVMe/SATA/SAS* + 4x SATA/SAS*)
    2 x 2.5" hot-swap drive bays (2x NVMe)(optional rear bays) 2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)

    *must with PIKE/RAID card

  • System Fan

    4

  • 網路功能

    Option 1
    1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
    or
    Option 2
    1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
    or
    None x + 1 x Mgmt LAN

  • 顯示晶片

    Aspeed AST2600 with 64MB VRAM

  • 多GPU支援

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 前面板輸出端子

    2 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    1 x OCP3.0 port

  • Switch/LED

    Front Switch/LED:
    1 x Power switch (w/LED)
    1 x Reset Switch
    1 x Location Switch (w/LED)
    1 x HDD Access LED
    1 x Message LED LAN 1-4 LED (on NIC Module)

    Rear Switch/LED:
    1 x Power switch w/LED
    1 x Port 80 LED(Q-Code)
    1 x Location Switch w/LED
    1 x Message LED

  • 作業系統支援

    Please find the latest OS support from https://servers.asus.com/support/os

  • 管理工具

    On-Board ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)

  • 電源供應

    1+1 Redundant 1600W 80 PLUS Platinum Power Supply
    Rating:
    100-127/200-240Vac,13A/9.5A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)
    200-240Vac,10A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China；100-127Vac, 12A only for NA)
    1+1 Redundant 2400W 80 PLUS Titanium Power Supply

    *2400W RPSU is required while choosing GPU SKU
