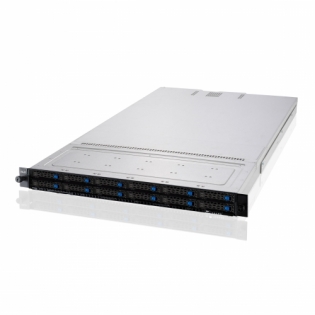

ASUS RS500A-E11-RS12U Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • 中央處理器

    1 x Socket SP3 (LGA 4094) Option 1
    AMD EPYC™ 7003 Series
    AMD EPYC™ 7002 Series
    3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

  • 記憶體

    總 Slots 數 : 16 (8-channel) Option 1
    總容量 : 最大至 2048GB RDIMM
    記憶體類型 :
    DDR4 3200 RDIMM
    DDR4 3200 LRDIMM
    DDR4 3200 LR-DIMM 3DS
    記憶體大小:
    128GB, 64GB, 32GB, 16GB
    * 最新更新請參考支援頁面。

  • 擴充槽

    1 x PCIe x16 slot (Gen4 x16 link,FH,HL)
    1 x PCIe x16 slot (Gen4 x16 link,LP,HL)
    1 x PCIe x16 slot (Gen4 x8 link,LP,HL)
    1 x OCP3.0 slot (Gen4 x16 link)

  • 資料儲存應用

    SATA 控制器: CPU Integrated
    2 x M.2 connector
    Optional kits Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • 磁碟機插槽

    Front:
    12 x 2.5" Hot-swap Storage Bays
    (Backplane Supports 12 x SATA/SAS/NVMe Devices)

    Internal: (by SKU configuration)
    4 x 2.5" Easy-swap Storage Bays
    (Backplane Supports 4 x SATA/NVMe Devices)

  • 網路功能

    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

  • Rear I/O Ports

    2 x USB 3.2 Gen1 port
    1 x VGA port
    1 x COM port
    2 x Gigabit LAN ports (RJ45)
    1 x Management port (RJ45)

  • Switch/LED

    Rear:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

    Front:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    2 x LAN LED

  • 作業系統支援

    Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html

  • 管理工具

    ASUS Control Center Enterprise (in-band)
    ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)

  • 電源規格

    1+1 Redundant 800W 80 PLUS Platinum Power Supply
    Rating: 100-127Vac/200-240Vac, 10A/5A, 50/60Hz
