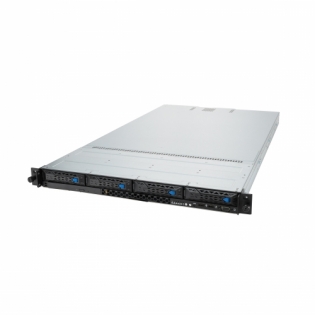

ASUS RS700A-E11-RS4U Server

詢價請立即連絡鴻業資訊-林小姐
914@megainfo.com.tw
02-2250-5577 #203
DETAIL詳細介紹

  • 中央處理器

    3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
    Max TDP : 280W
    AMD EPYC™ 7003 Series
    2 x Socket SP3 (LGA 4094)
    AMD EPYC™ 7002 Series

  • 記憶體

    32 (8-channel per CPU, 16 DIMM per CPU) per Node
    Dual Channel3200/2933LRDIMM
    Dual Channel3200/2933LR-DIMM 3DSnon ECC
    Total Slots :
    Capacity :
    Maximum up to 4096GB per socket
    Dual ChannelDDR43200/2933RDIMM
    128GB, 64GB LRDIMM
    256GB, 128GB, 64GB LR-DIMM 3DS
    64GB, 32GB, 16GB RDIMM

  • Graphic Card

    Please refer to GPU support list

  • 擴充槽

    Up to 3 x Expansion slots + 1 x Internal PIKE slot
    1 x PCIe Gen4 x16, FHFL (CPU1)
    1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
    1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)

  • 資料儲存應用

    4 x SATA3 6Gb/s ports (SATA 6Gb/s & PCIe® Gen4 x4 link)
    Storage Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
    Broadcom MegaRAID 9560-16i (Optional)
    2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode

  • 磁碟機插槽

    4 x 3.5" hot-swap drive bays (4 x NVMe/SATA/SAS*)
    2 x M.2 (support SATA/PCIe M.2) (up to 22110) (CPU2)
    *must with PIKE/RAID card

  • System Fan

    8

  • 附屬儲存裝置 FDD/CD/DVD

    1 x Slim type Optical Drive Bay (optional)

  • 網路功能

    None x + 1 x Mgmt LAN
    1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
    Option 2
    1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN

  • 顯示晶片

    Aspeed AST2600 with 64MB VRAM

  • 多GPU支援

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 前面板輸出端子

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x RJ-45 Mgmt LAN port
    1 x OCP3.0 port (Please remember to insert OCP3.0 Board)

  • Switch/LED

    Front Switch/LED:
    1 x Power switch (w/LED)
    1 x Reset Switch
    1 x Location Switch (w/LED)
    1 x HDD Access LED
    1 x Message LED LAN 1-4 LED (on NIC Module)

    Rear Switch/LED:
    1 x Power switch w/LED
    1 x Port 80 LED(Q-Code)
    1 x Location Switch w/LED
    1 x Message LED

  • 作業系統支援

    Please find the latest OS support from https://servers.asus.com/support/os

  • 管理工具

    On-Board ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)

  • 電源規格

    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
    Rating: 100-127/200-240Vac,9.4A/4.72A (x2) ,50/60Hz Class I (240Vdc, 4.6A Only for China)

    *1600W RPSU is required while choosing GPU SKU
